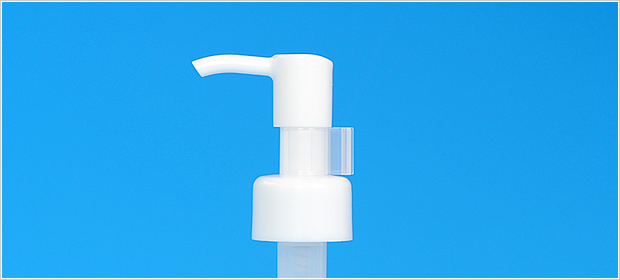

Stopper type 1cc pump dispenser

The integrated stopper mechanism provides for a simple shapes.

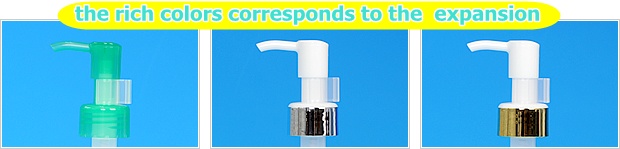

the rich colors corresponds to the  expansion

Features

  1. easy press head design
    Smart head design is adopted for an easy press
  2. high quality
    Using the latest design structure, leakage is prevented. can discharge high viscosity formulations.
  3. Primary use
    Cosmetics and Daily goods

Specification

Material PP,HDPE,LDPE,PE,SUS
Mechanism Direct Pressure
Dosage 1cc
No. of pieces 600pcs
Recommended bottle mouth size bottle mouth size
Bottles that best matches with our products is here >> List of bottles

Components

No. component material color
1 ejector head PP Natural*
2 stopper PP Natural*
3 upper container PP Natural*
4 shaft PP Natural
5 Stem PP Natural
6 accumulator PP Natural
7 Piston LDPE Natural
8 Bush HDPE Natural
9 gasket High sheet Blue
10 Spring SUS -
11 Ball SUS -
12 Dip Tube LDPE Natural

* Color can be ordered separately for these components

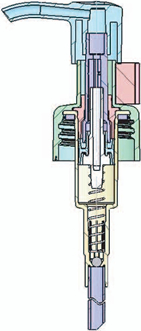

[outline]

outline
